Hi friends,
Thanks to Mr.Steven who kept pushing us on this, also thanks to Stephen Dyer, he suggested this mount from last year.
Finally, it's ready!
If you are in the Southern Hemisphere, this phone mount is a must-have.
Please feel free to contact us anytime, any questions.
Cheers,
John
2020.08.01
---------------------------------------------
Why do I need it?
Here are some common situations when you would like to use it:
- in countries like Australia and Switzerland where laser pointers are mostly banned
- when buildings, mountains, etc. blocking the sky ahead of you that you could not point to Polaris
- in locations such as airports and observatories where laser pointers are not allowed
Phone Mount Specifications:
Wide compatibility: 60mm-93mm, 2.36”-3.66”
Arca-Swiss compatible: Yes
Max load: 2kg
Item weight: 0.352lbs(0.16kg)
Material: aluminum alloy
For polar alignment with phones, the Phone Mount is adjustable, easy to use, and light-weight, with the phone-holder part free to rotate.
- free to rotate the phone-holder part
- extendable grip enabling to adjust the phone-holder part for your phone size
- soft padding to securely holds your device
- fit for both 3/8"-16 and 1/4"-20 screws
Phone Mount Phone Mount Adapter to NOMAD

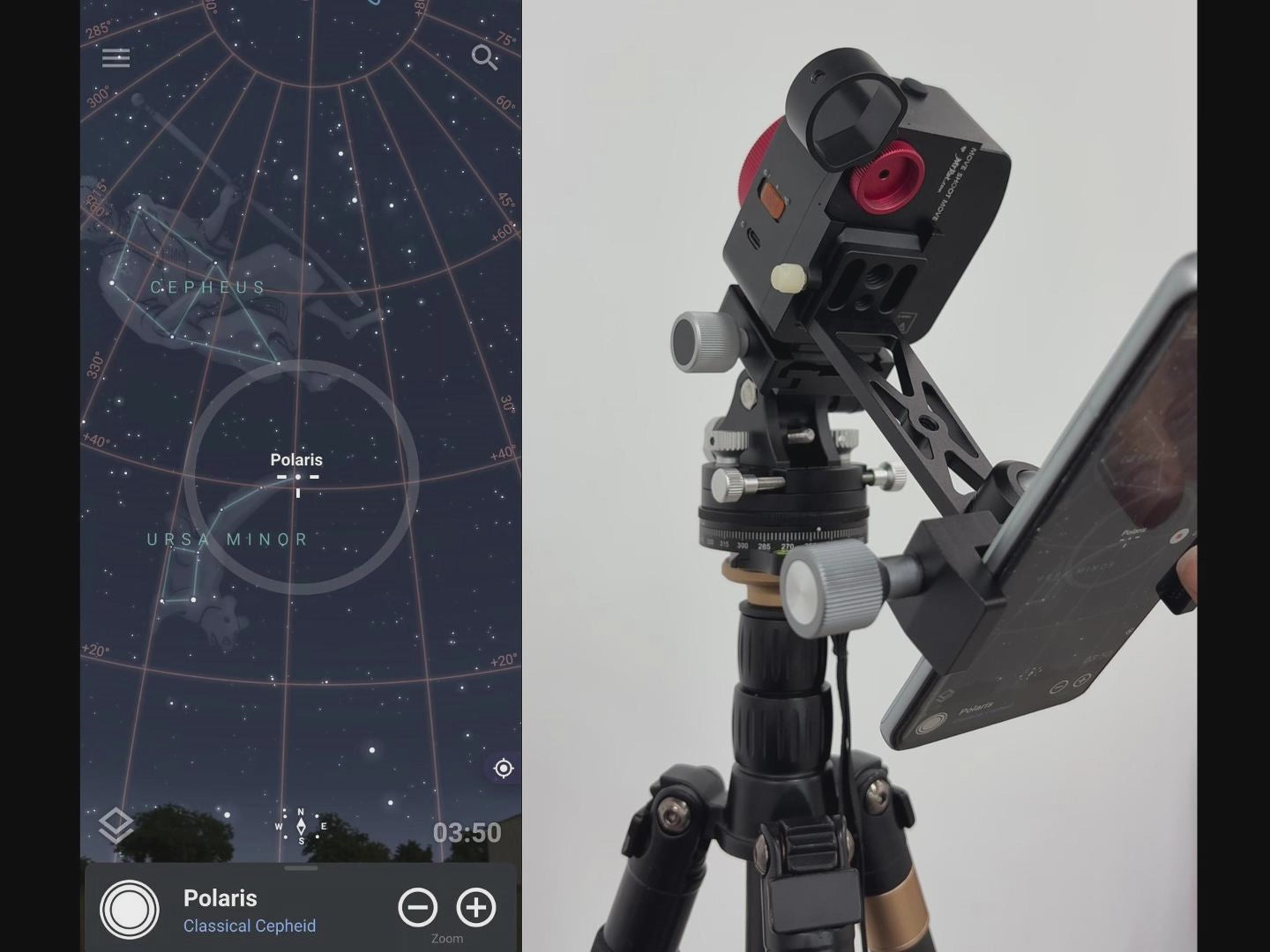

How to Use it for Polar Alignment?
1) Please remove the red cap on the backside of NOMAD first
2) Attach the phone mount adapter to the backside of NOMAD by the red cap
3) Slide the phone mount into the phone mount holder part and tighten it by the nylon screw
4) Attach your phone to the Phone mount holder, align the edges of phone to the edges of NOMAD
5) Use apps like Stellarium or Photopills to find the alignment target Polaris/ NCP Northern Hemisphere or SCP for the Southern Hemisphere.
6) Follow the arrow guide of the app then adjust the setup for polar alignment
Phone Mount Adapter to Polar Scope
Thanks to Steven Barnes and Dylan O'Donnell, a new phone mount adapter has been developed to make polar alignment simpler and more efficient. This adapter allows you to securely attach a phone mount to a polar scope, enabling initial alignment through your phone, followed by precise adjustments using the polar scope.
Product Specifications:
-
Color: Black
-
Included Screws:
-
M4-8 screw × 1
-
M6-8 screw × 1
-
M2-6 Phillips Flat Head Screw × 4
-
-
Weight: 51.8 g
Key Features:
-
Stabilized Fit: The bottom of the polar scope end is trapezoid-shaped, ensuring stability and preventing slipping.
-
Anti-Loss Blocker: The phone mount end has a blocker to prevent accidental drops or loss.
How to Use the Phone Mount Adapter:
1. Attach to the Polar Scope: Position the adapter on the polar scope with the logo facing upward, then secure it with the top screw.
2. Insert the Phone Mount: Slide the MSM phone mount into the adapter from the top, and fasten it with the side screw to lock it in place.
3. Align and Fine-Tune: You’re now ready to perform your polar alignment! Start with basic alignment using the phone mount, then fine-tune using the polar scope.
